Product list
  • MRS10/15/20 series

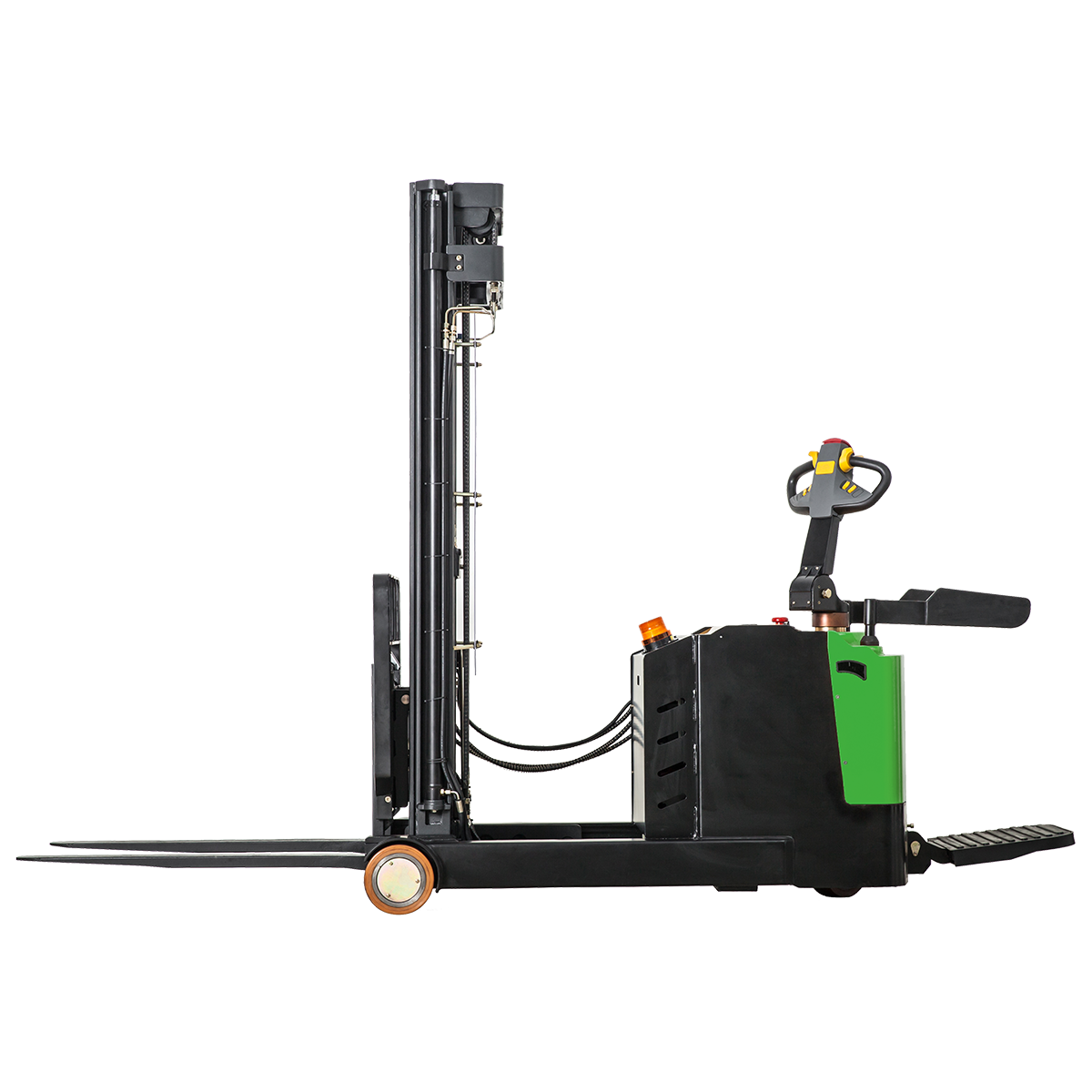

    MRS10-2.0T All-electric moving forward all-electric stacker
  • MRS10/15/20 series
    MRS10-2.0T All-electric moving forward all-electric stacker
  • MRS10/15/20 series
    MRS10-2.0T All-electric moving forward all-electric stacker
  • MRS10/15/20 series
    MRS10-2.0T All-electric moving forward all-electric stacker
  • Product features
  • Technical parameter
  • Optional configuration
  • File download
  • Product features
    Full automatic intelligent control handle, EPS electronic power steering, easy and quick operation.

    Full automatic intelligent control handle, EPS electronic power steering, easy and quick operation.

  • Intelligent acceleration control handle, reasonable operating range; Ergonomic technology.
  • EPS electronic power steering function makes the whole steering process easy to achieve turning operation.
  • High performance imported full AC hydraulic system, electromagnetic, regenerative braking system

    High performance imported full AC hydraulic system, electromagnetic, regenerative braking system

  • High-performance full AC hydraulic system; Low voice, small vibration, stable and reliable lift.
  • Battery regenerative braking system ensures the same safe parking on slopes
  • CURTIS AC electrical control system

    CURTIS AC electrical control system

  • Equipped with American Curtis electric control system; Stepless speed regulation and reverse brake function
  • Intelligent front and rear mobile door frame; Suitable for single and double sided tray.

    Intelligent front and rear mobile door frame; Suitable for single and double sided tray.

  • With real-time data collected from sensors on the gantry and fork legs, this innovative safety protection feature effectively avoids the risk of gantry retraction when the gantry height is less than 300MM during operation
  • Technical parameter
    Model
    MRS10
    MRS15
    MRS20
    Load capacity
    KG
    1000
    1500
    2000
    Load center
    MM
    500
    500
    500
    Lifting height
    MM
    2500/3000/3500
    2500/3000/3500
    2500/3000/3500
    Static height of portal frame
    MM
    3370/3870/4170
    3370/3870/4170
    3370/3870/4170
    Overall length
    Excluding the pedal
    MM
    2686
    2786
    2986
    Overall width
    MM
    850
    850
    900
    Battery voltage/capacity
    V/AH
    24/210
    24/210
    24/210
    Service weight with battery
    KG
    1800
    1900
    2000
    Optional configuration
    File download
